در این مقاله می خواهیم با استفاده از تکنولوژی WPF و کدهای#C ، ماشین حساب ساده ای بنویسیم که در آن بتوانیم چهار عمل اصلی ضرب، تقسیم، جمع و تفریق را انجام دهیم.

برای شروع کار، ابتدا از برنامه Visual Studio ، یک پروژه جدید از نوع WPF  ایجاد می کنیم .

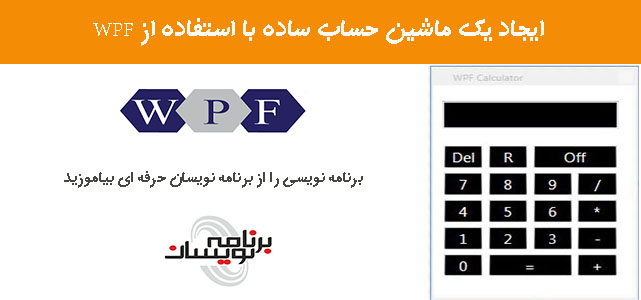

سپس با استفاده از کامپوننت های موجود، طرح زیر را پیاده سازی می کنیم.

کدهای XAML مربوط به این کامپوننت ها به شکل زیر خواهند بود :

    <Window x:Class="MyCalculatorv1.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="WPF Calculator" Height="310" Width="237" ResizeMode="NoResize" WindowStartupLocation="CenterScreen" Topmost="True">
        <Grid Background="White" Height="270" VerticalAlignment="Top">
            <Button Content="7" HorizontalAlignment="Left" Margin="11,115,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2,2,2,1" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>

            <TextBox Height="38" TextWrapping="Wrap" VerticalAlignment="Top" Margin="10,20,0,0" HorizontalAlignment="Left" Width="201" FontSize="20" Background="Black" BorderThickness="2" Name="tb" Text="">
                <TextBox.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}" />
                </TextBox.Foreground>

            </TextBox>

            <Button Content="8" HorizontalAlignment="Left" Margin="62,115,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="9" HorizontalAlignment="Left" Margin="113,115,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="/" HorizontalAlignment="Left" Margin="164,115,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="4" HorizontalAlignment="Left" Margin="11,151,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="5" HorizontalAlignment="Left" Margin="62,151,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="6" HorizontalAlignment="Left" Margin="113,151,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="*" HorizontalAlignment="Left" Margin="164,151,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="1" HorizontalAlignment="Left" Margin="11,187,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="2" HorizontalAlignment="Left" Margin="62,187,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="3" HorizontalAlignment="Left" Margin="113,187,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="-" HorizontalAlignment="Left" Margin="164,187,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="0" HorizontalAlignment="Left" Margin="11,223,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="=" HorizontalAlignment="Left" Margin="62,223,0,0" VerticalAlignment="Top" Width="97" Height="31" FontSize="18" BorderThickness="2" Click="Result_click">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="+" HorizontalAlignment="Left" Margin="164,223,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Button_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="Off" HorizontalAlignment="Left" Margin="113,79,0,0" VerticalAlignment="Top" Width="97" Height="31" FontSize="18" BorderThickness="2" Click="Off_Click_1">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="Del" HorizontalAlignment="Left" Margin="11,79,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="Del_Click">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>
            <Button Content="R" HorizontalAlignment="Left" Margin="62,79,0,0" VerticalAlignment="Top" Width="46" Height="31" FontSize="18" BorderThickness="2" Click="R_Click">
                <Button.Foreground>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.Foreground>
                <Button.BorderBrush>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowColorKey}}"/>
                </Button.BorderBrush>
                <Button.Background>
                    <SolidColorBrush Color="{DynamicResource {x:Static SystemColors.WindowTextColorKey}}"/>
                </Button.Background>
            </Button>

        </Grid>
    </Window>

حالا برای برخی دکمه های موجود در فایل، رویداد های لازم را می نویسیم.

    using System;
    using System.Windows;
    using System.Windows.Controls;

    namespace MyCalculatorv1
    {
        public partial class MainWindow : Window
        {
            public MainWindow()
            {
                InitializeComponent();
            }

            private void Button_Click_1(object sender, RoutedEventArgs e)
            {
                Button b = (Button) sender;
                tb.Text += b.Content.ToString();
            }

            private void Result_click(object sender, RoutedEventArgs e)
            {
                try
                {
                    result();
                }
                catch (Exception exc)
                {
                    tb.Text = "Error!";
                }
            }

            private void result()
            {
                String op;
                int iOp = 0;
                if (tb.Text.Contains("+"))
                {
                    iOp = tb.Text.IndexOf("+");
                }
                else if (tb.Text.Contains("-"))
                {
                    iOp = tb.Text.IndexOf("-");
                }
                else if (tb.Text.Contains("*"))
                {
                    iOp = tb.Text.IndexOf("*");
                }
                else if (tb.Text.Contains("/"))
                {
                    iOp = tb.Text.IndexOf("/");
                }
                else
                {
                    //error
                }

                op = tb.Text.Substring(iOp, 1);
                double op1 = Convert.ToDouble(tb.Text.Substring(0, iOp));
                double op2 = Convert.ToDouble(tb.Text.Substring(iOp + 1, tb.Text.Length - iOp - 1));

                if (op == "+")
                {
                    tb.Text += "=" + (op1 + op2);
                }
                else if (op == "-")
                {
                    tb.Text += "=" + (op1 - op2);
                }
                else if (op == "*")
                {
                    tb.Text += "=" + (op1 * op2);
                }
                else
                {
                    tb.Text += "=" + (op1 / op2);
                }
            }

            private void Off_Click_1(object sender, RoutedEventArgs e)
            {
                Application.Current.Shutdown();
            }

            private void Del_Click(object sender, RoutedEventArgs e)
            {
                tb.Text = "";
            }

            private void R_Click(object sender, RoutedEventArgs e)
            {
                if (tb.Text.Length > 0)
                {
                    tb.Text = tb.Text.Substring(0, tb.Text.Length - 1);
                }
            }
        }
    }

در تکه کد بالا، ما عملیات ریاضی مورد نظرمان را پیاده سازی کرده ایم. در تکه کد مربوط به R_click ، برای حذف آخرین مقدار اضافه شده کدنویسی کرده ایم و در دکمه ی delete برای حذف نتیجه کدنویسی کرده ایم. از دکمه ی Off برای خروج از برنامه استفاده کرده ایم. در ماشین حساب، اگر بخواهیم عملیات جدیدی انجام بدهیم، باید ابتدا از دکمه ی delete استفاده کنیم.
